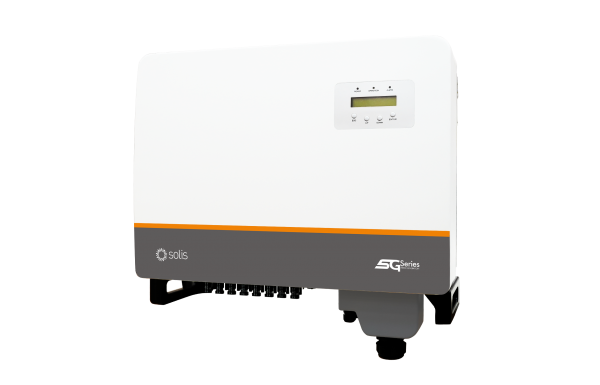

Solis 50K-5G Three Phase Inverter

Categories ,
Enquire Now

Product Specifications

  • Transformerless
  • Max. input voltage: 1100 V
  • Rated input voltage: 600 V
  • MPPT voltage range: 200-1000 V
  • MPPT number: 4
  • Max. input strings number: 8
  • Rated output power: 50 kW
  • Rated grid voltage: 3/PE, 480 V
  • Rated grid frequency: 50 Hz / 60 Hz
  • Rated grid output current: 60.1 A
  • THDi: <3%
  • Max. Efficiency: 98.8%
  • Operating ambient temperature range: -25 ~ +60°C
  • Dimensions (W*H*D): 647*629*252 mm
  • Weight: 45 kg
  • Fanless Cooling concept
  • WiFi/GPRS Real time monitoring
  • IP65 Ingress protection
  • 3/4 MPPT design with precise MPPT algorithm
  • Perfect commercial site monitoring solution
  • Strings intelligent monitoring, Smart I-V curve scan
  • 150% DC overload ratio, 13A input for each PV string
  • Fuse free design to avoid fire hazard
